地震計 CMG-3ESPC (Güralp)

Pictures

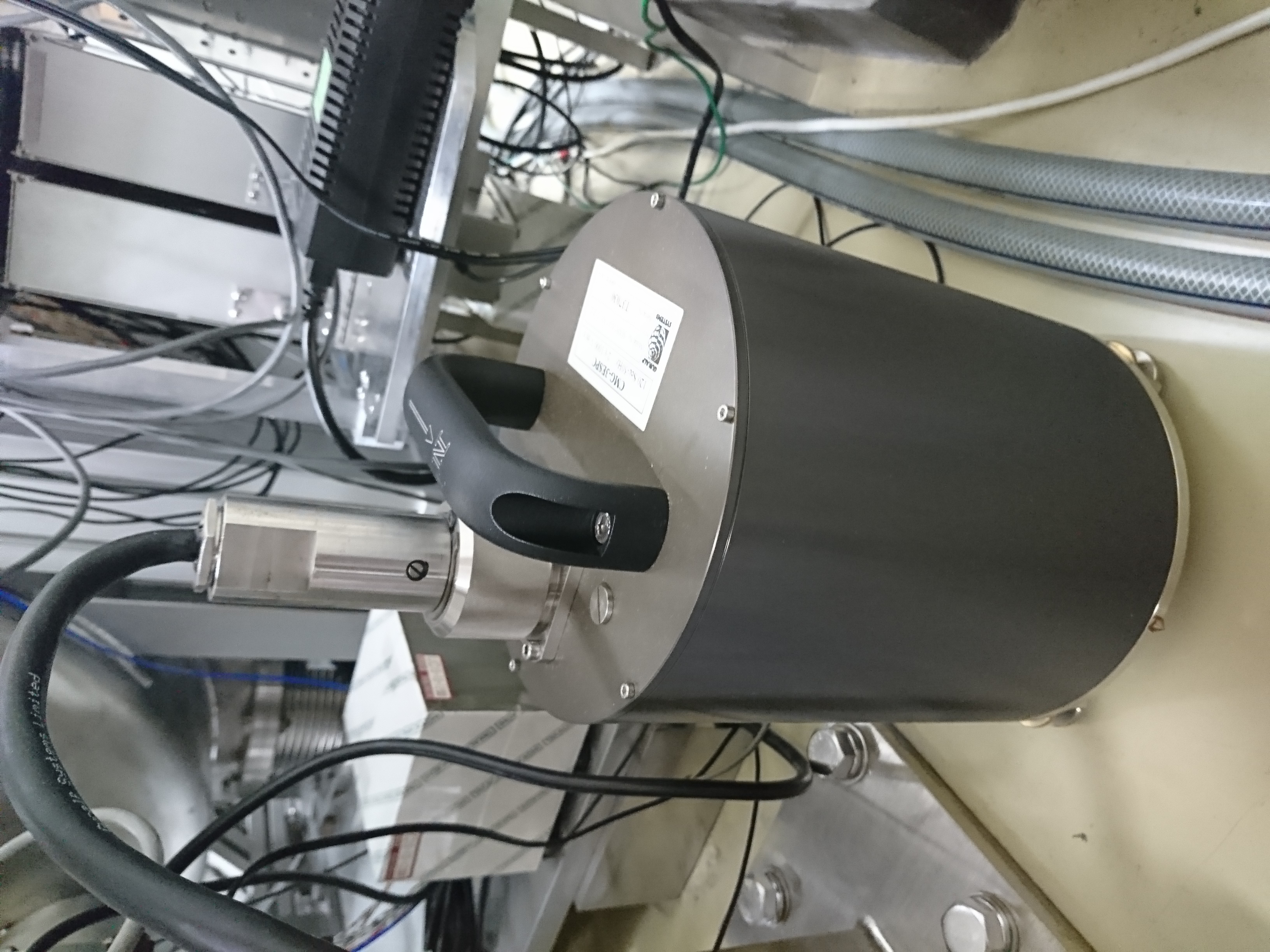

Seismometer

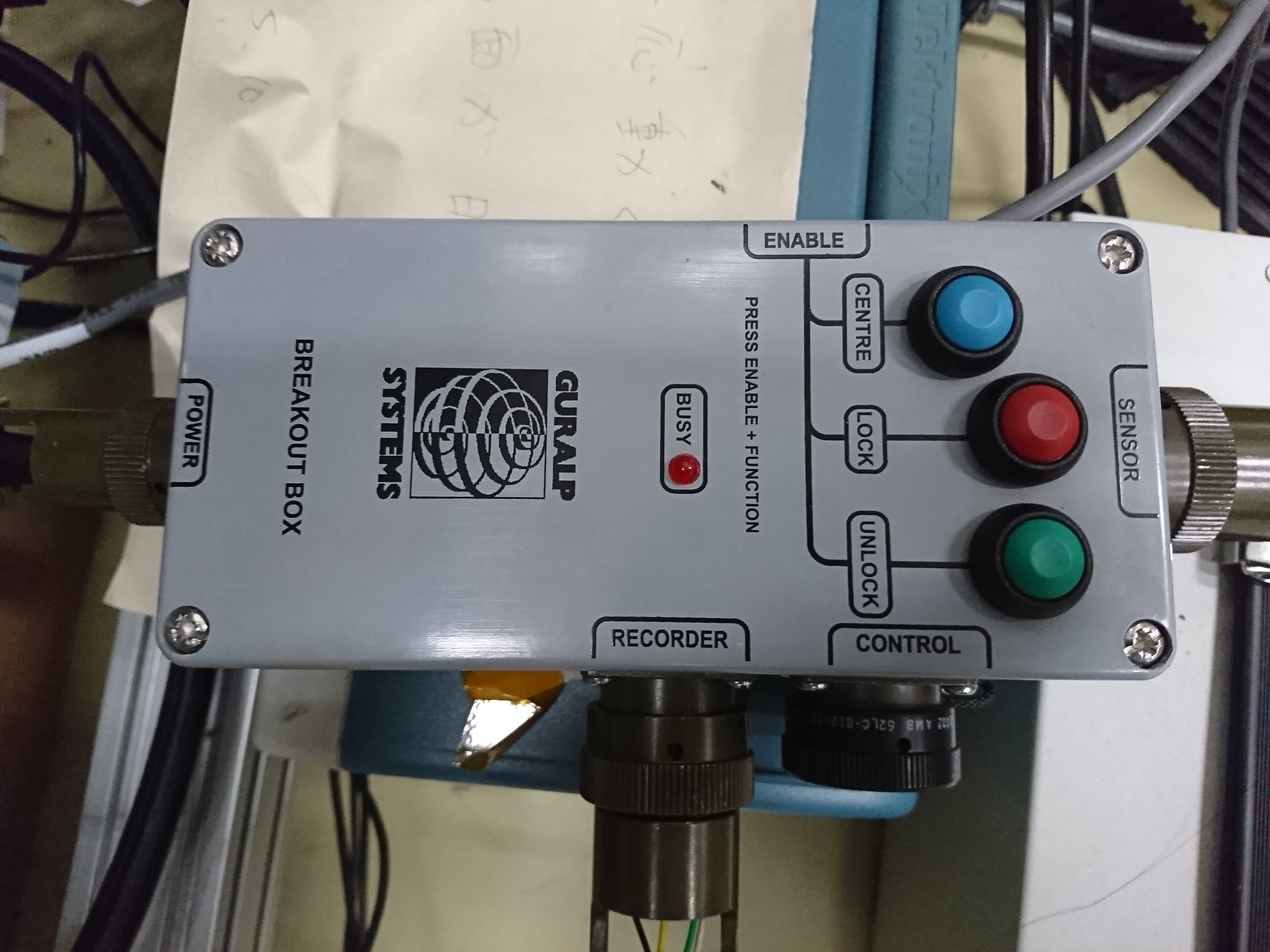

Break Box


How to Use

  1. Prepare a power supply. You need bipolar 12V.
  2. Connect the power supply and the break box by a power supply cable. The power supply cable is the one with 2 wires at the end (one is red, the other black). Connect the red-colored cable to +V, and the black one to -V.
  3. Connect the seismometer and the break box by the thickiest cable
  4. Connect the cable you haven't connected to the "RECORDER" terminal of the break box. This cable has ""3 output"": green, white, and yellow. These correspond to NS , EW(horizontal) and Z(vertical).
  5. Turn on the power supply.
  6. Push "ENABLE" button and "UNLOCK" button at the same time for 7 seconds. Then the "BUSY" LED will light. After a moment, the outputs will fluctuate around 0. If not, push "ENABLE" and "CENTRE" in the same way. Then the instrument start to calibrate its position to the center.

Parameters

Response function


Output assignment

outputdirection
greenN-S
whiteE-W
yellowZ (vertical)

zero & pole

pole (Hz)zero (Hz)
5.89 x 10^{-3} + 5.89 x 10^{-3} i0
5.89 x 10^{-3} - 5.89 x 10^{-3} i0
80
160
180

Gain

axisGain
N-S991
W-E992
Z980

Noise Level

will be written someday.

Reference
