6ch PZT Driver for AVIT †
- 20 dB PZT driver with 6 channels
- Used for actuating AVIT PZT actuators
Picture †
#ref(): File not found: "3rdLPF.png" at page "AndoLabInstrumentsM2629"

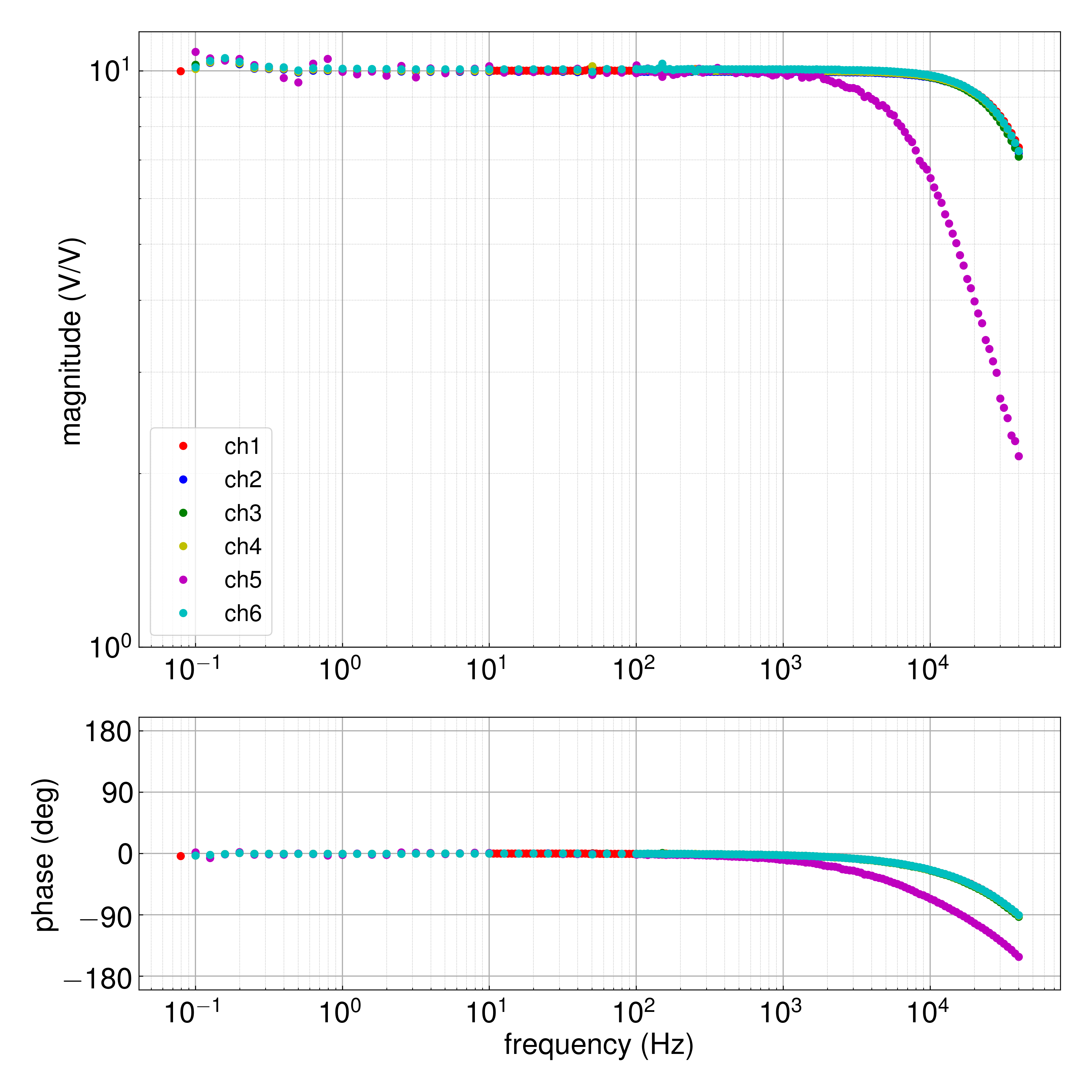

Transfer Function †
- Measured by S. Takano in 22nd June 2020
Equivalent Input Noise †
- Measured by S. Takano in 22nd June 2020
Notice †
- Apparently channel 5 has less performance than the others. Actually this chanel works somehow, but you should avoid using it.
