1ch PZT Driver †

• 20 dB PZT driver with 1 channel
• Main module is PI E-610. This module is also used in 6ch PZT Driver

How to use †

1. Connect DC power. Default connector is HIROSE 4pin male (as usual) on the back panel. 6-30V DC power is acceptable (15V is desired).
2. Connect PZT to "OUT" port and apply the control voltage to "IN" port.
3. Offset is variable by adjusting a potentiometer "OFFSET".
4. Output voltage is [IN+OFFSET] x 10
5. "MON" port is a mirror of "OUT" port given by OUT / 100

Picture †

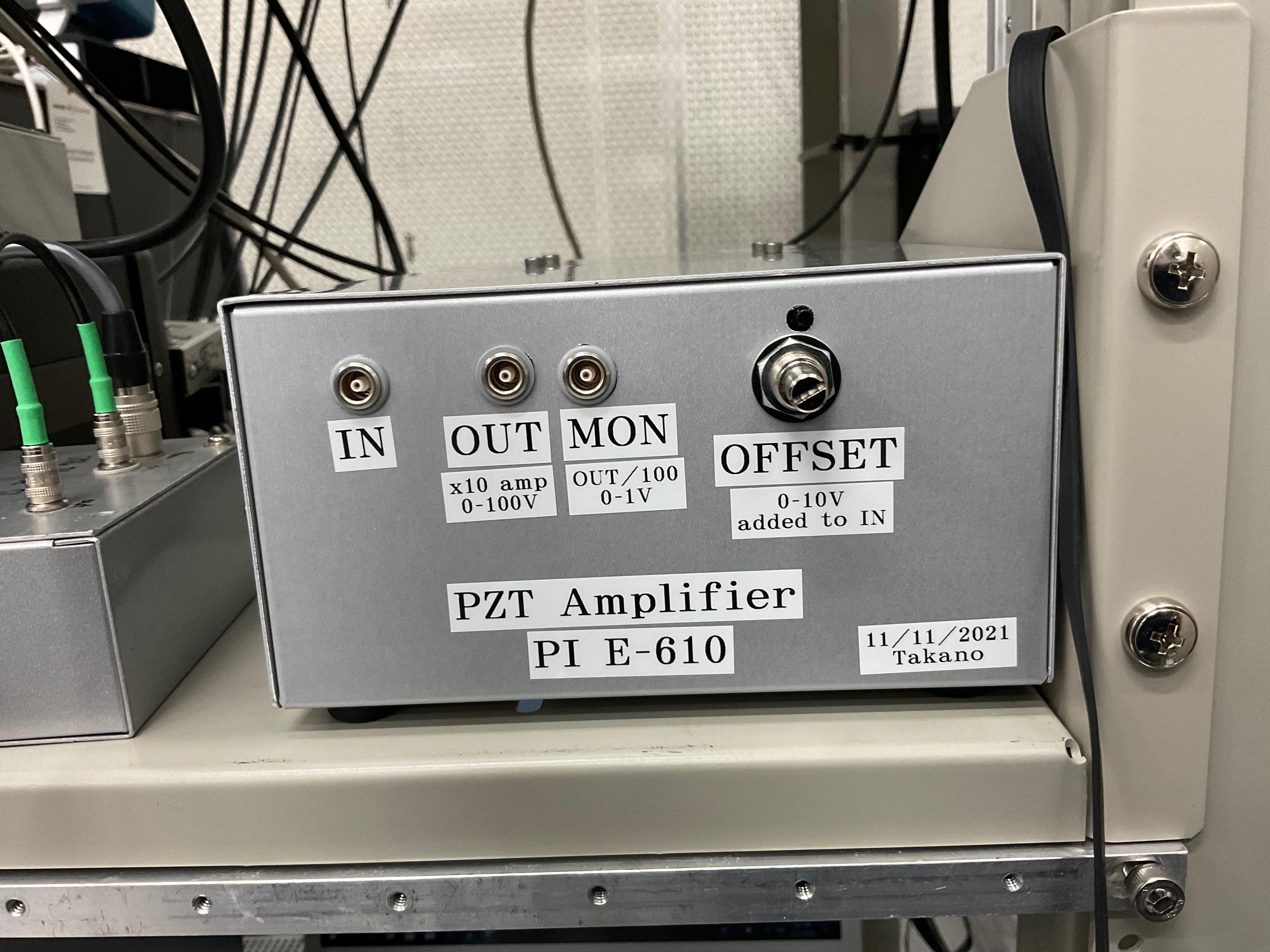

• Front

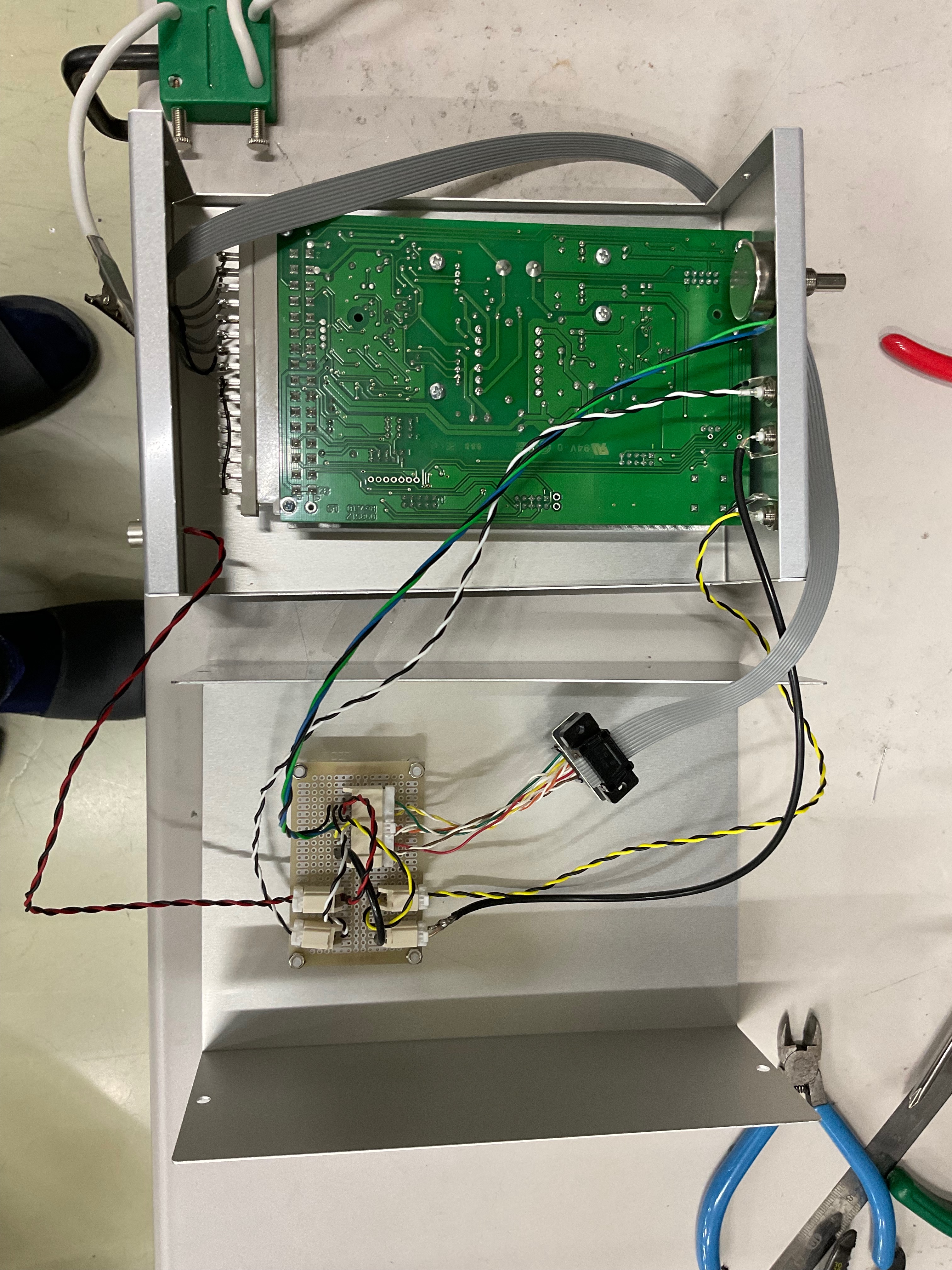

• Inside


Transfer Function †

• Measured by S. Takano on 10/11/2021

• Gain is 20dB for OUT, -20dB for MON
• 2 poles at 9.8kHz

Output Noise †

• Measured by S. Takano on 10/11/2021


Notes †

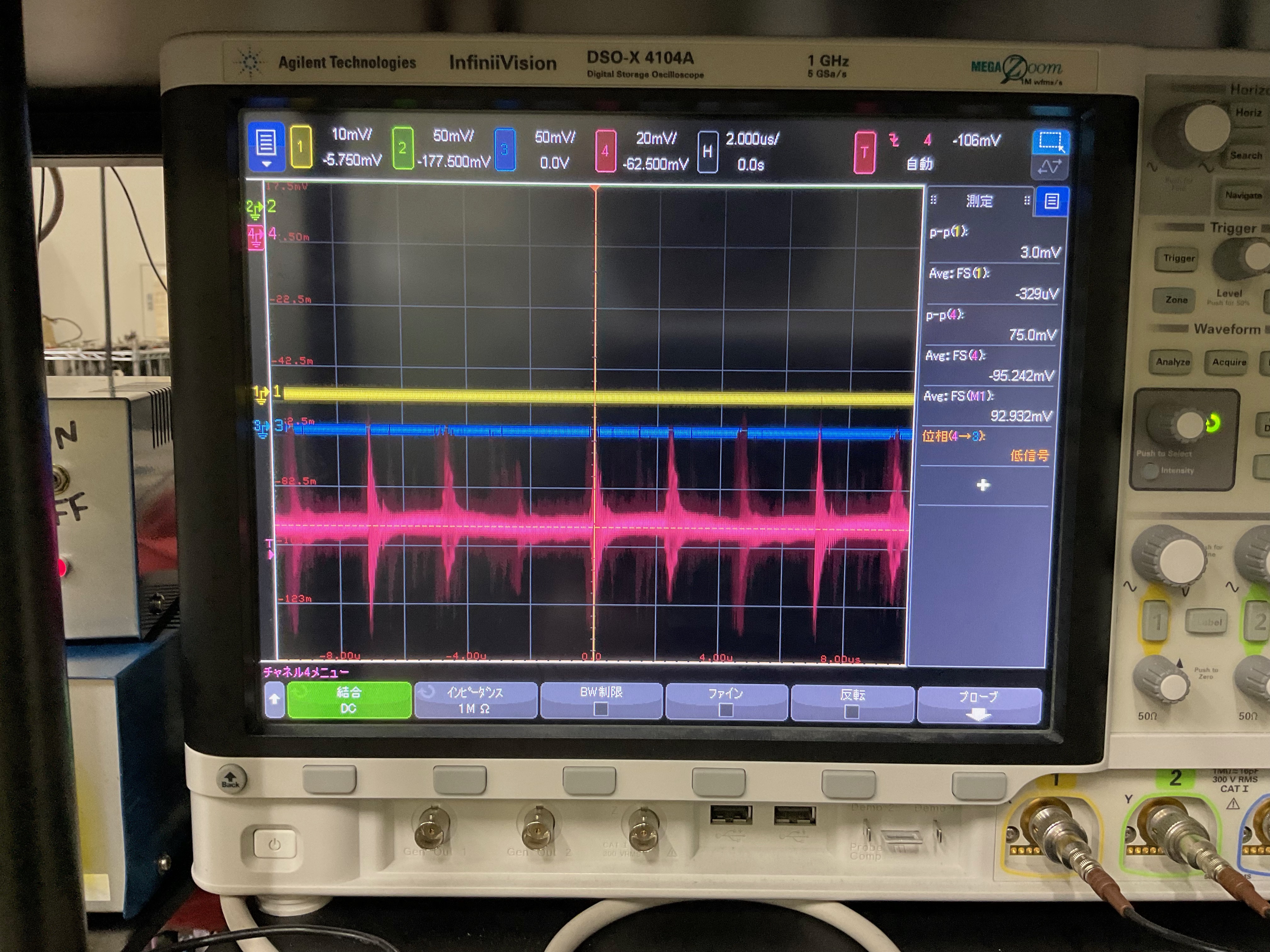

• I found there are glitches around 60MHz. If you don't like them, you should add some filter.
