AndoLabInstruments

1ch PZT Driver †

• 20 dB PZT driver with 1 channel
• Main module is PI E-610. This module is also used in 6ch PZT Driver

How to use †

1. Connect DC power. Default connector is HIROSE 4pin male (as usual) on the back panel. 6-30V DC power is acceptable (15V is desired).
2. Connect PZT to "OUT" port and apply the control voltage to "IN" port.
3. Offset is variable by adjusting a potentiometer "OFFSET".
4. Output voltage is [IN+OFFSET] x 10
5. "MON" port is a mirror of "OUT" port given by OUT / 100

Picture †

#ref(): File not found: "PIdriver.jpg" at page "AndoLabInstruments1chPZTDriver"

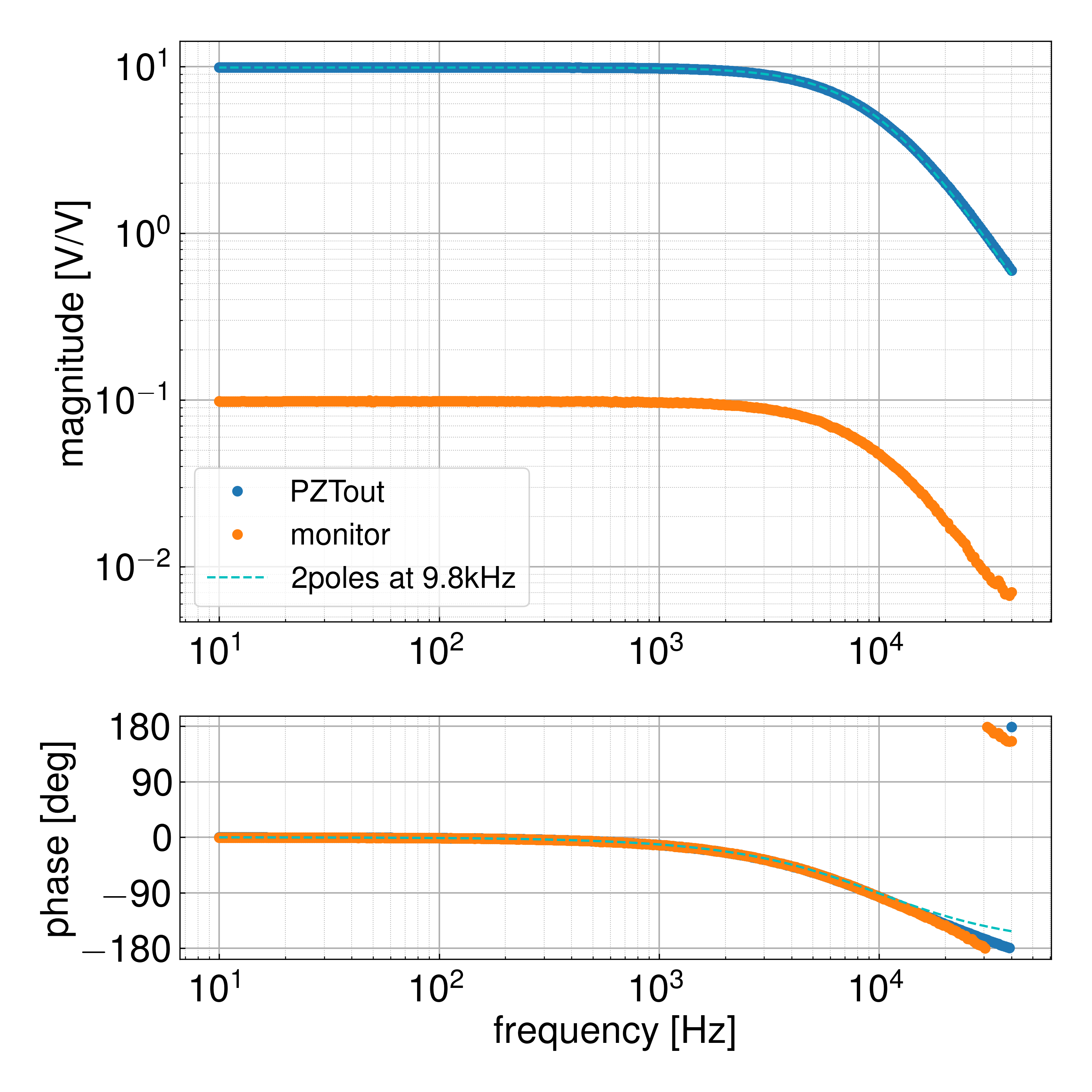

Transfer Function †

• Measured by S. Takano on 10/11/2021

• 2 poles at 9.8kHz

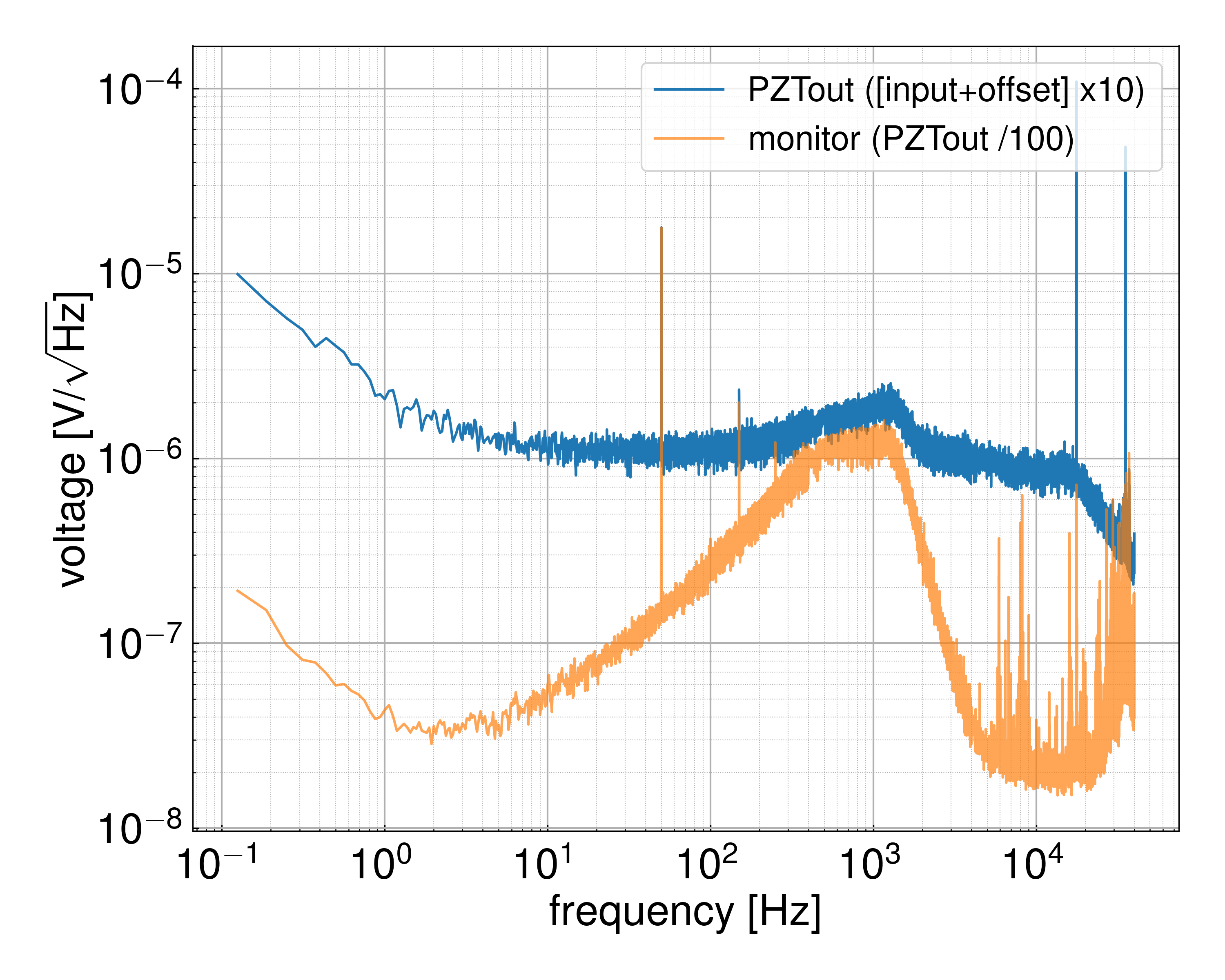

Output Noise †

• Measured by S. Takano on 10/11/2021
