AndoLabInstruments

6ch PZT Driver †

• 20 dB PZT driver with 6 channel
• Closed loop control is capable with an adequate actuator

How to use †

This driver has 2 outputs, labelled with "PZT" and "MON". Connect "PZT" output to a PZT, and connect "MON" output to an oscilloscope or a data logger. "MON" port outputs one hundredth of "PZT" port voltage.

Picture †

Transfer Function †

• Measured by Y. Oshima in 8th July 2020

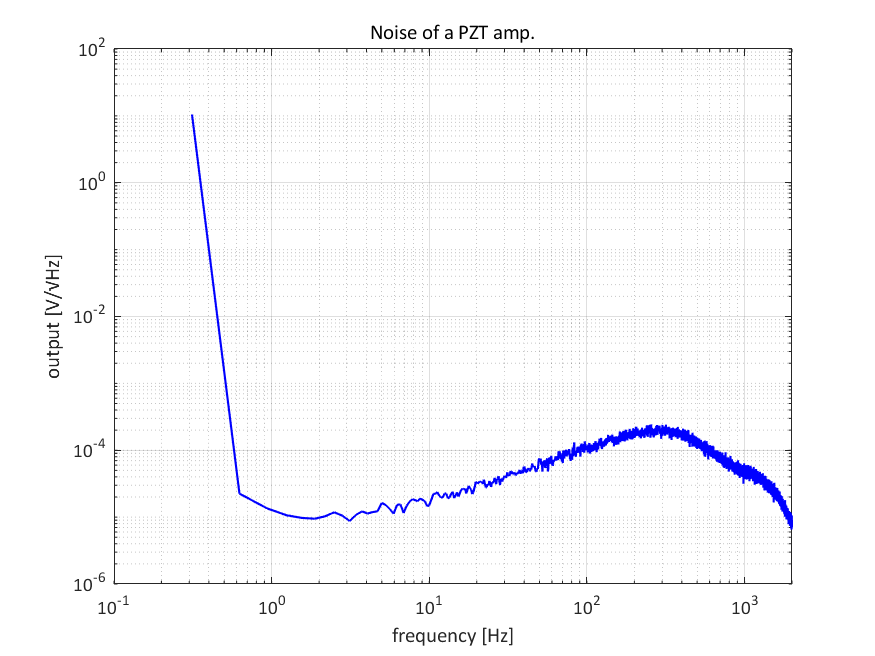

Output Noise †

• Measured by Y. Oshima in 8th July 2020


Notice †

• This driver has 1st order low-pass with cutoff frequency 400 Hz. This driver adds 10 V offset to output. The range of output voltage is from - 30 V to 110 V. (2021.11.11. added by Takano)

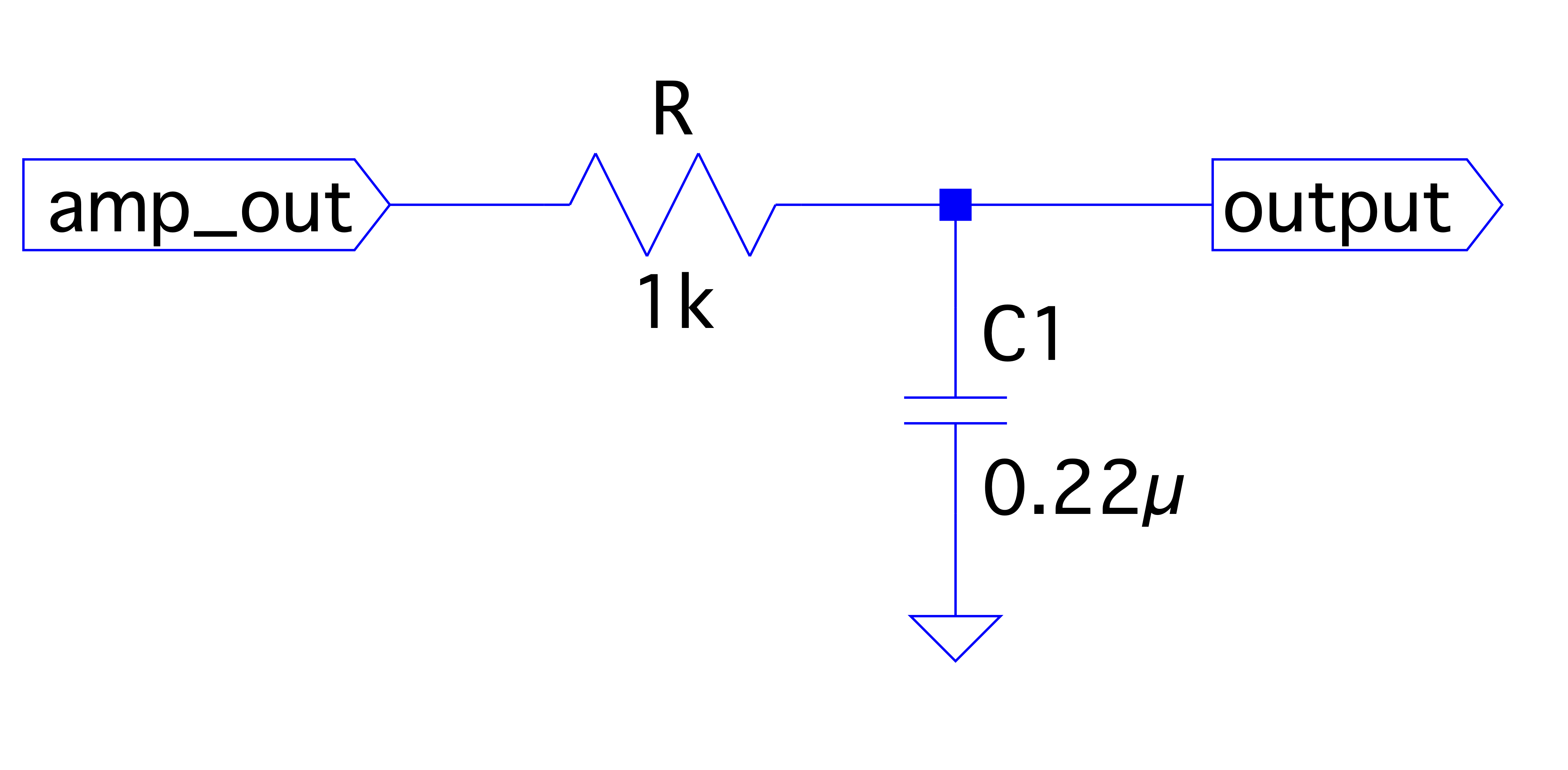

• An RC filter is inserted just before the outputs:
