6ch PZT Driver for AVIT †

• 20 dB PZT driver with 6 channels
• Used for actuating AVIT PZT actuators

Picture †

#ref(): File not found: "3rdLPF.png" at page "AndoLabInstrumentsM2629"

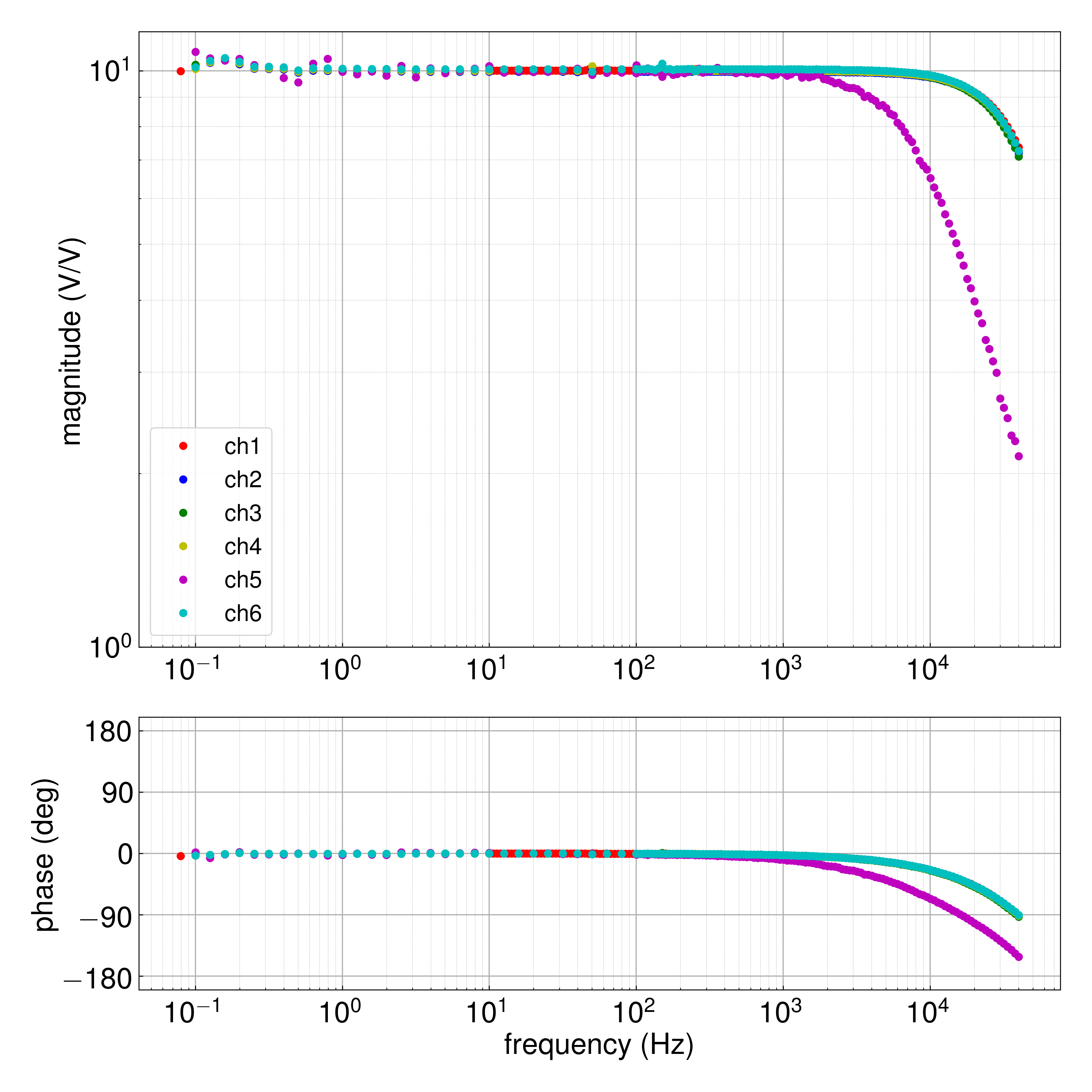

Transfer Function †

• Measured by S. Takano in 22nd June 2020

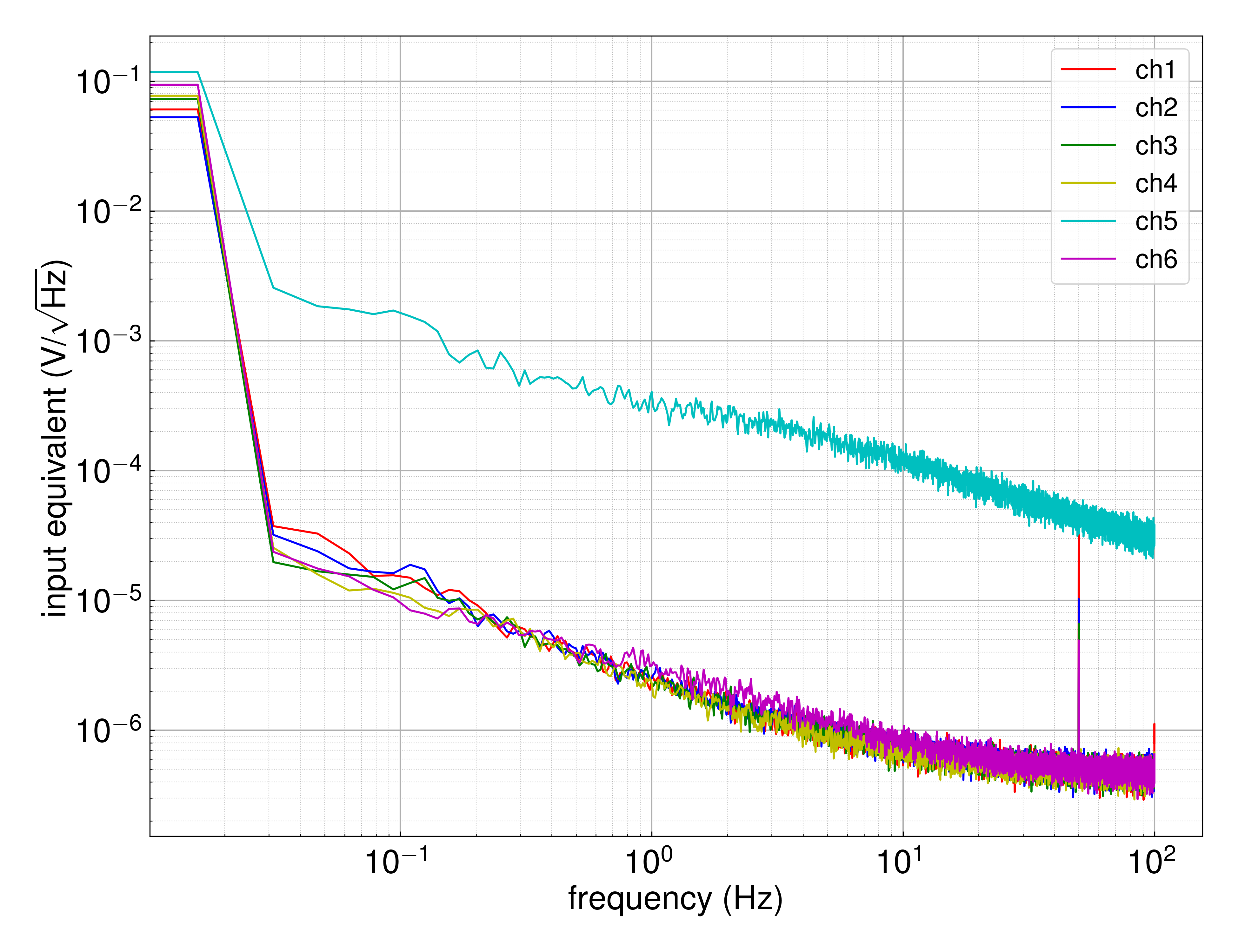

Equivalent Input Noise †

• Measured by S. Takano in 22nd June 2020


Notice †

• Apparently channel 5 has less performance than the others. Actually this chanel works somehow, but you should avoid using it.
