2018年末B207号室の電源配線整理 †

B207号室の電源系がパンク気味なので、整理することにした。 We will clean up power line on B207.

使用機器調査 Investigation of used instruments †

• https://docs.google.com/spreadsheets/d/1YpIlHMuPXe8VWwgFzgFLraSfzt_4KmS0AHXnM-xla4Y/edit?usp=sharing
  • See Sheet1 for power usage for each experiment

電力測定 Power measurement (2019/09/03) †

• Power budget for 100V (rough estimation)
  • TOBA 23A
  • Takano/Miyazaki 12A
  • Q measurement 17A
  • DECIGO 15A
  • Quantum 21A
  • Optical levitation 22A
  • Lorentz violation 3A
  • Axion 6A
  • Common 21A

• Power budget for 200V (rough estimation)
  • TOBA 53A
  • Lorentz violation ? (rotation table)

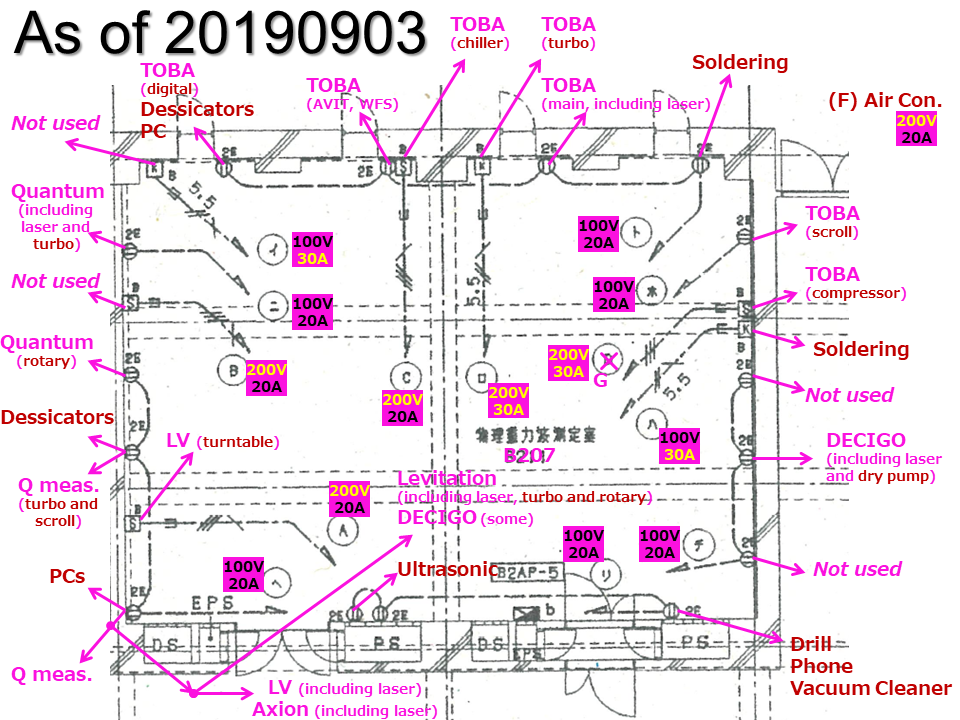

• Power distribution map as of 2019/09/03

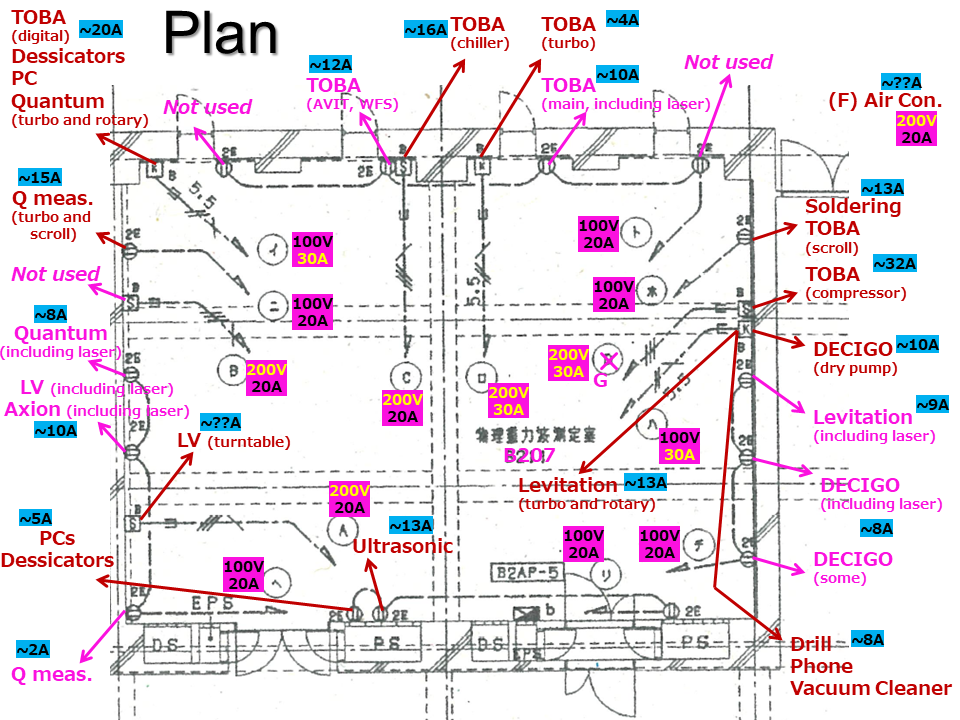

配電プラン Power distribution plan †

• Split "dirty" power lines such as pumps and PCs
• Relax power consumption for "リ"
  • Power for optical levitation experiment from "ハ"
• List of things we bought
  • 15A tap https://www.monotaro.com/p/3469/3696/ https://www.monotaro.com/p/3469/3714/
  • Cable cover https://www.monotaro.com/p/8818/6673/
  • Extension cord https://www.monotaro.com/p/7605/5743/

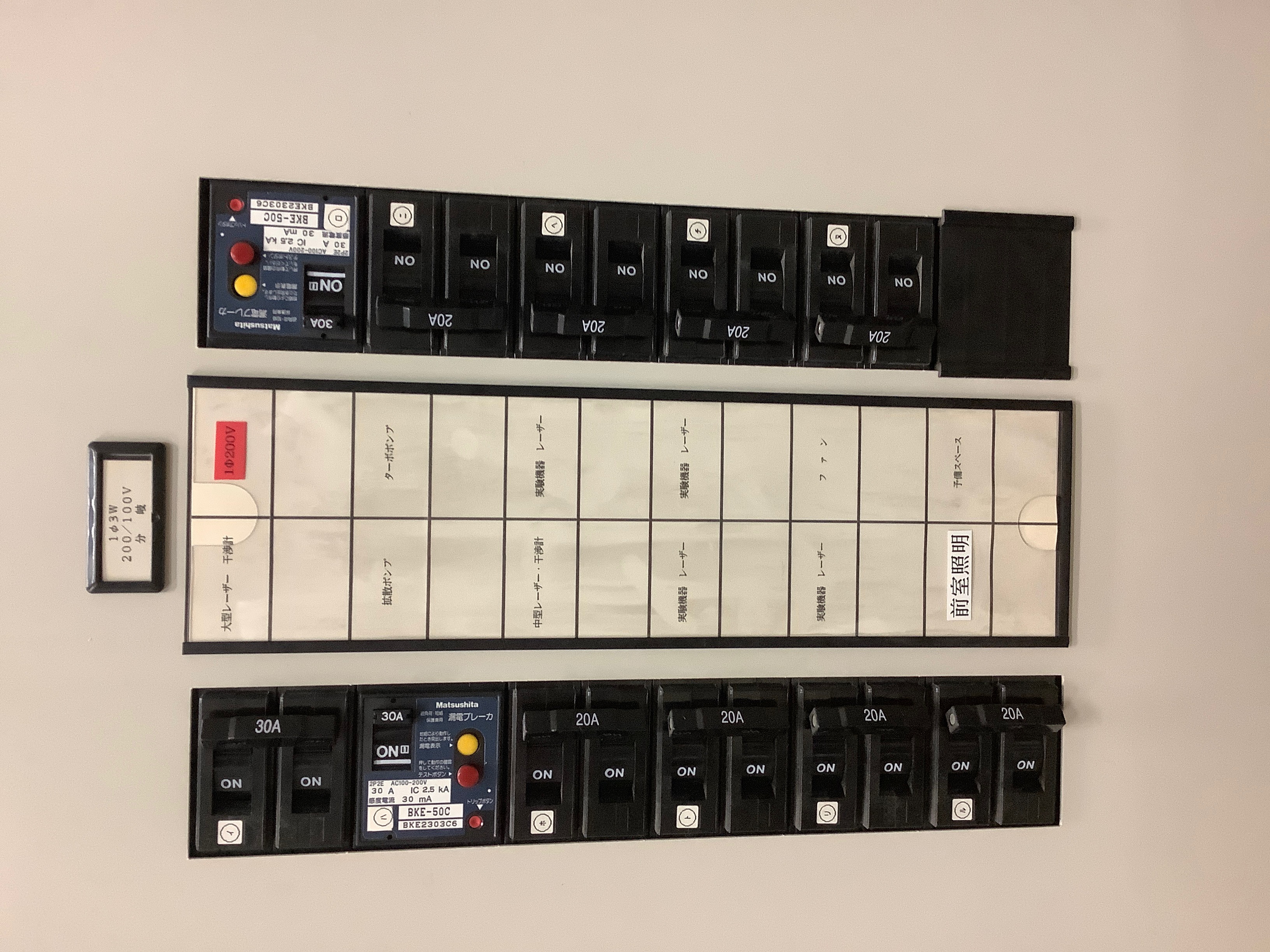

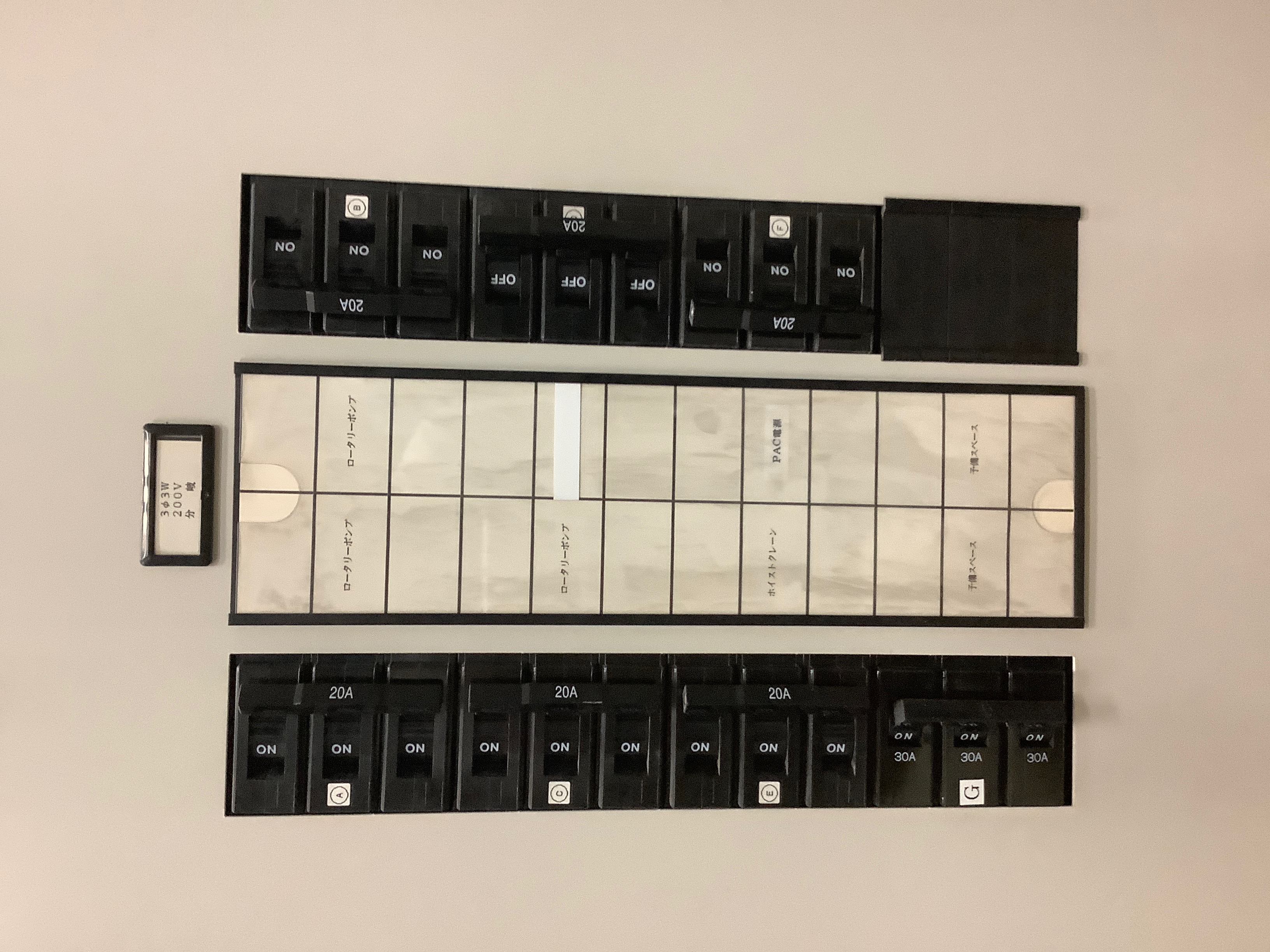

分電盤の写真 Power distrubion boards †
