Differential Amplifier †

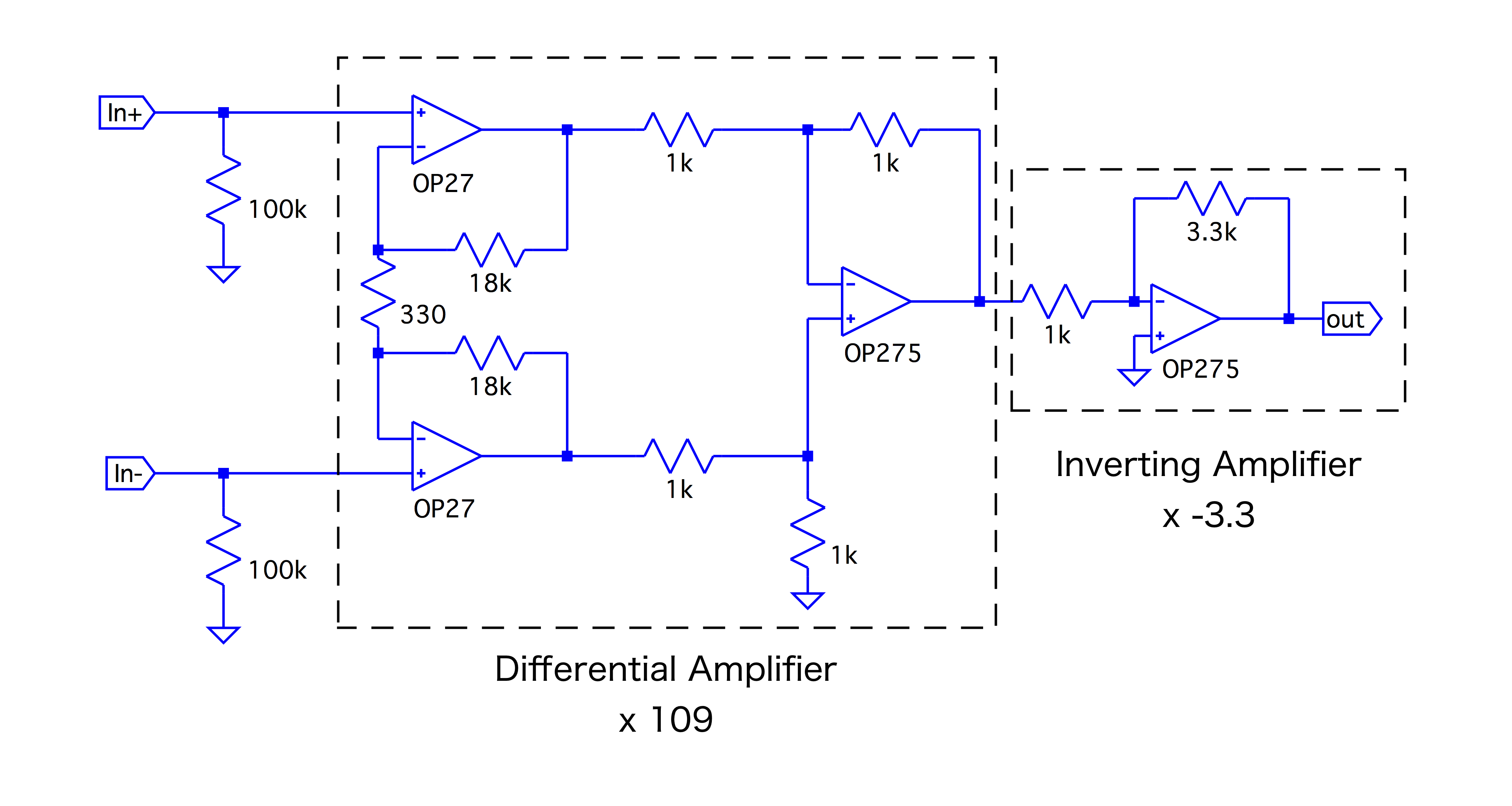

Circuit diagram †

Implementation †

Differential Amplifier which multiply the differential signal by factor of 360
Designed to be used for Geophone preamps, but eventually not used because it's too noisy
Please feel free to use this amp

Design †

designed by S Takano in Sep. 2018 based on LIGO's Geophone preamp

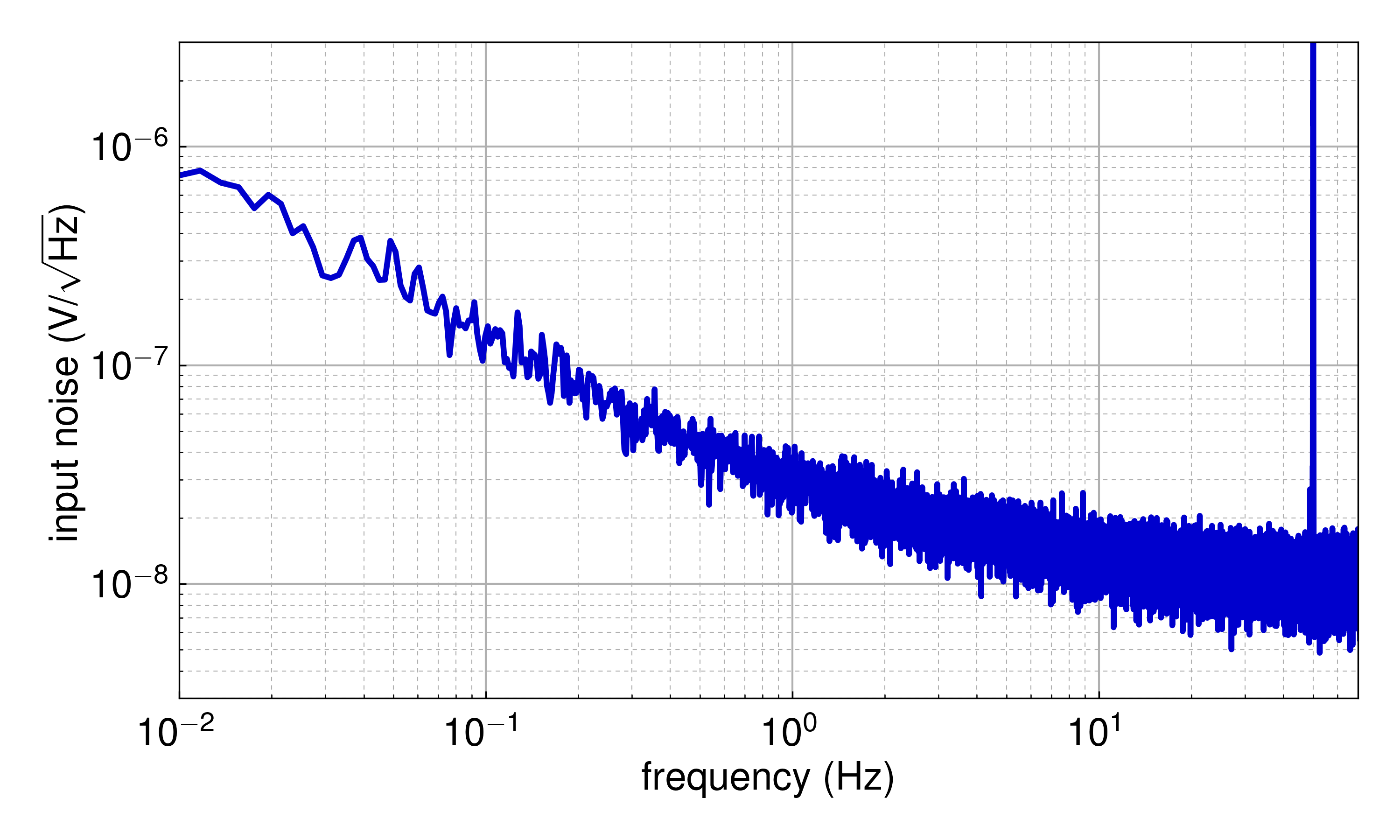

Noise †
