Photo sensor (SG-2BC) circuit board †

This board is used with photo sensor, SG-2BC, and is composed of an I-V convertor and a non-inverting amplifier.

Circuit diagram and board picture †

Version 1 †

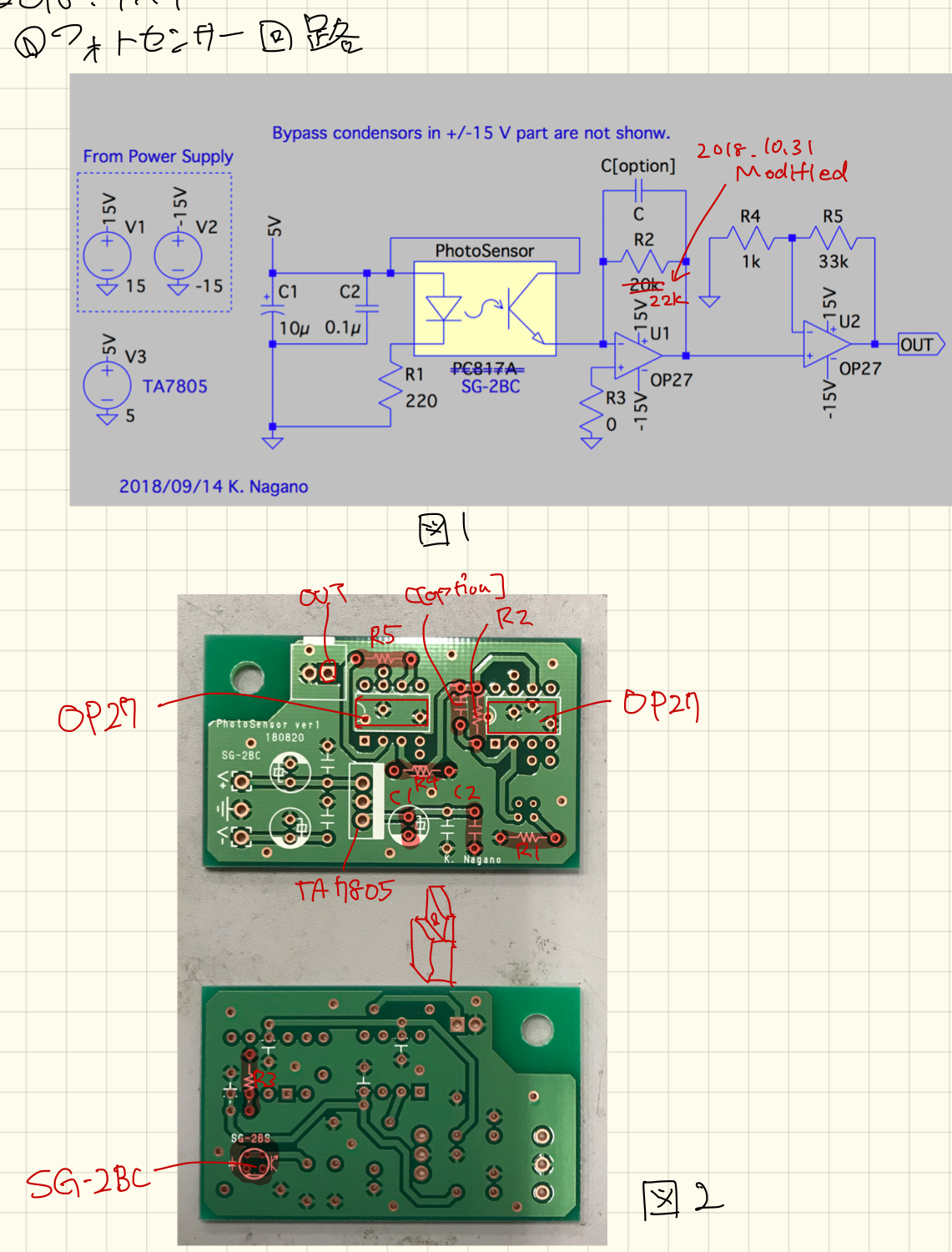

図1: Circuit diagram (typical constants are shown.)

図2: Board picture

Design †

• Ver1: designed by K. Nagano in Aug. 2018.
  • File directory (in PC in office)
    • Circuit diagram: hoge
    • Board design: hoge

Manufacturing †

• K. Nagano ordered 20 borads to P-ban in Aug. 2018.
• If you want to use this board, ask K. Nagano

Usage History †

• 2018/08/XX: 20 delivered (total 20(v1)), K. Nagano
• 2018/09/XX: 1 used for test (total 19(v1)), K. Nagano
• 2018/10/12: 4 used for TOBA (total 15(v1)), S. Takano
• 2018/10/12: 2 used for Mini-DECIGO (total 13(v1)), S. Takano (asked by K. Nagano)
