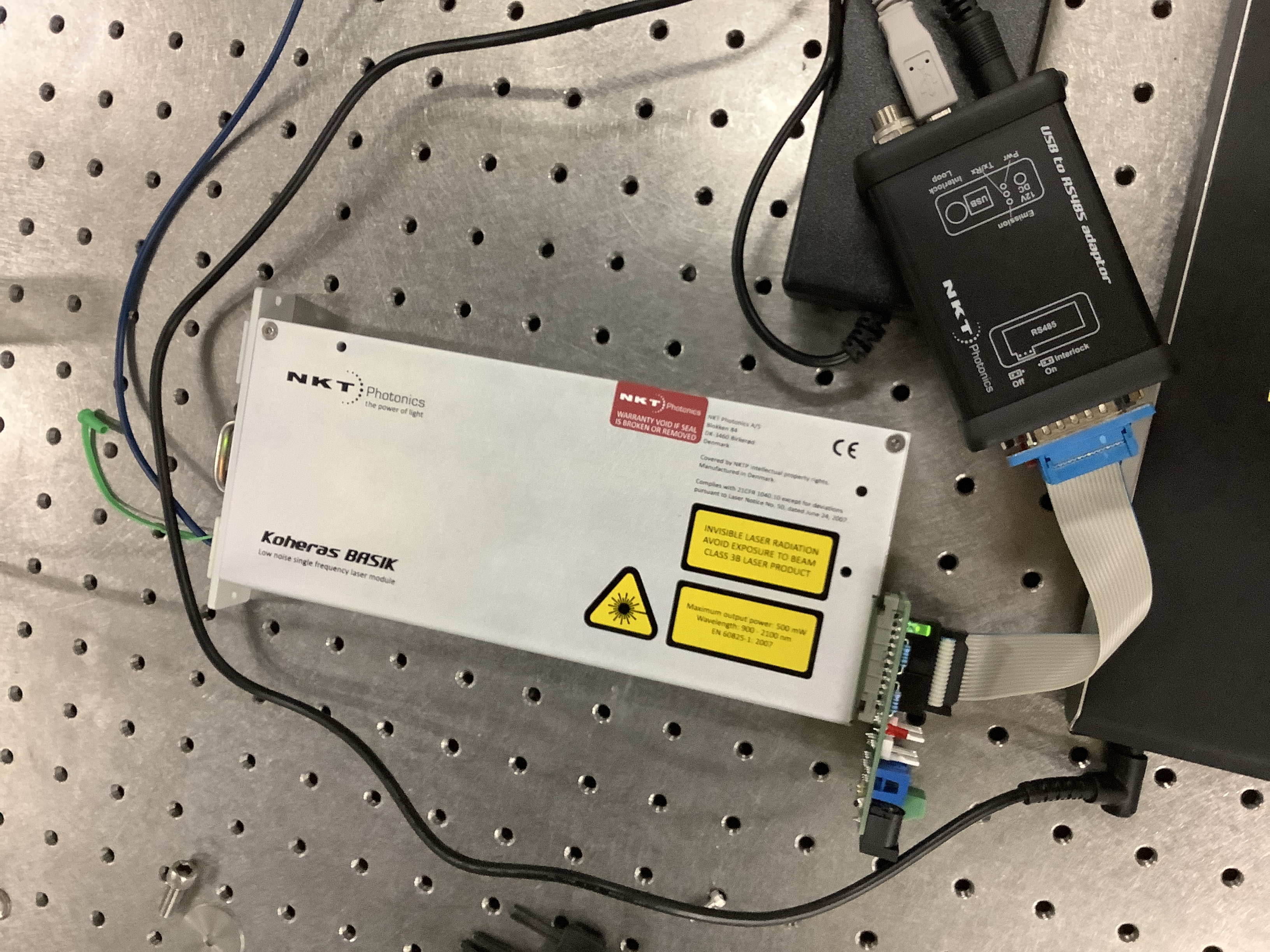

Koheras BasiK Y10 (SN: K102-102-605) †

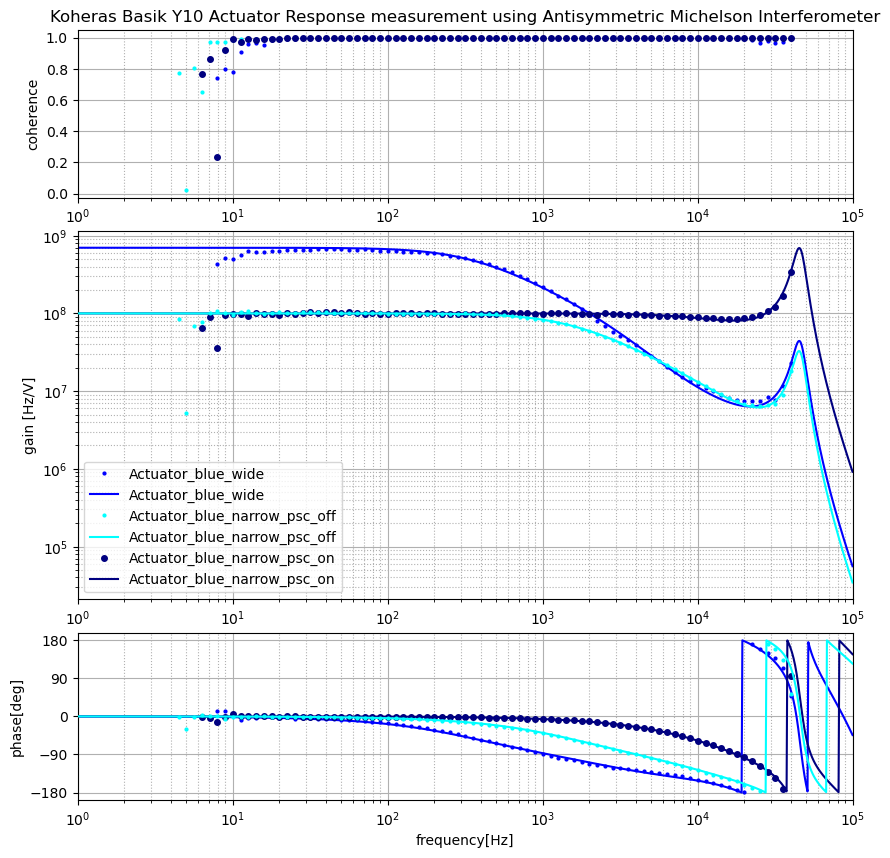

3種類の設定における測定
- 1.Wide dynamic range mode
- 2.Narrow dynamic range mode, Phase shift compensation: off
- 3.Narrow dynamic range mode, Phase shift compensation: on
poles and zeros, DC ゲイン, 時定数
- (Wide) pole : [338 Hz, 3.10 kHz], zero: [9.37 kHz], t_delay: [9 us], DC gain: [700 MHz/V]
- (Narrow PSC off) pole : [1.50 kHz, 12.58 kHz], zero: [41.88 kHz], t_delay: [4 us], DC gain: [100 MHz/V]
- (Narrow PSC on) pole : [13kHz], zero [none], t_delay: [4 us], DC gain: [100 MHz/V]
ピエゾの共振
- 共振周波数 46 kHz, Q値: 5
