Offset+Lowpass circuit for toy Michelson interferometer †

• Add offset (-10V~10V)
• First-order lowpass filter (fc=1.5Hz)
• Variable gain (0~400)

QR code †

Circuit diagram †

Photos †

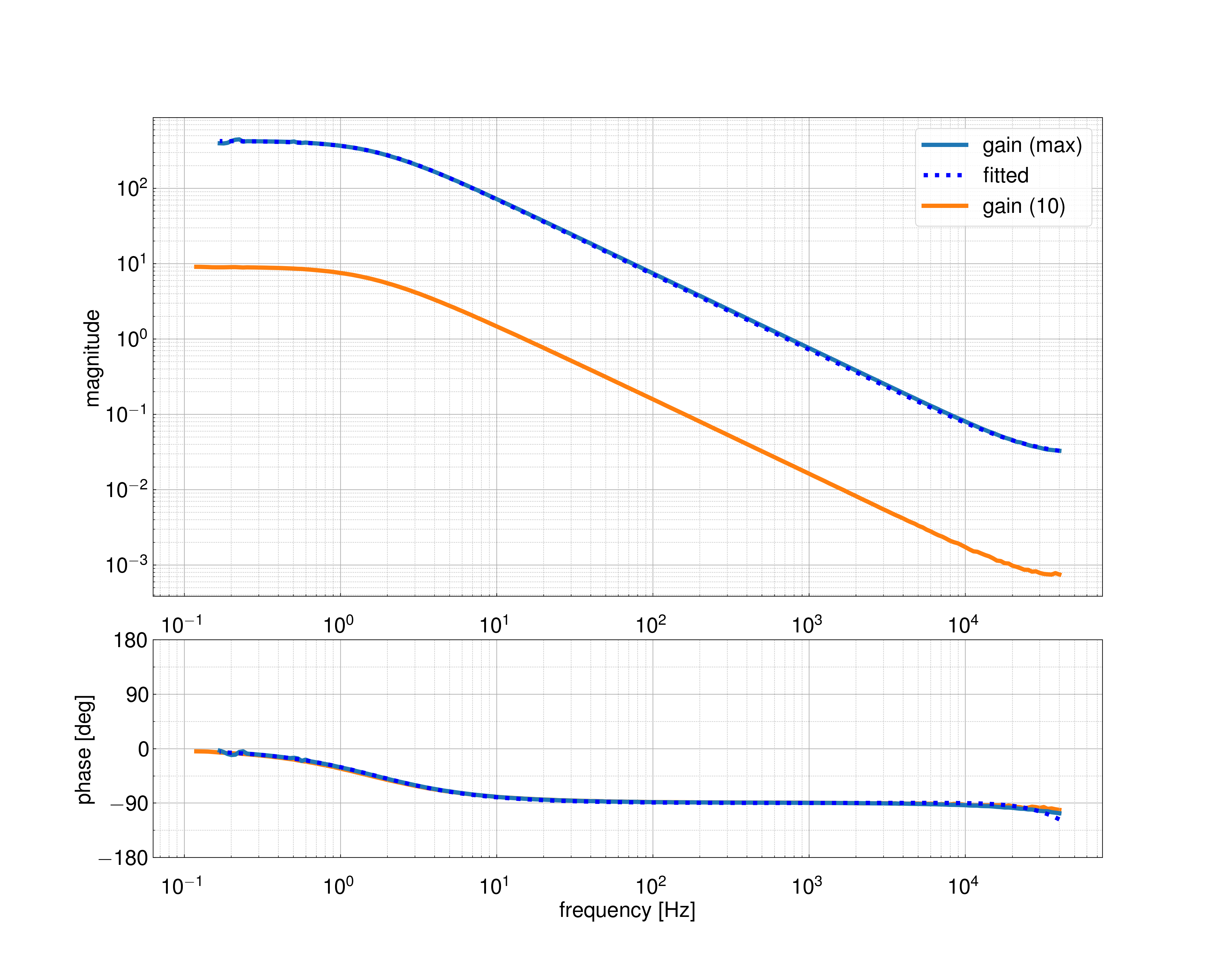

Transfer Function †

Noise Level †

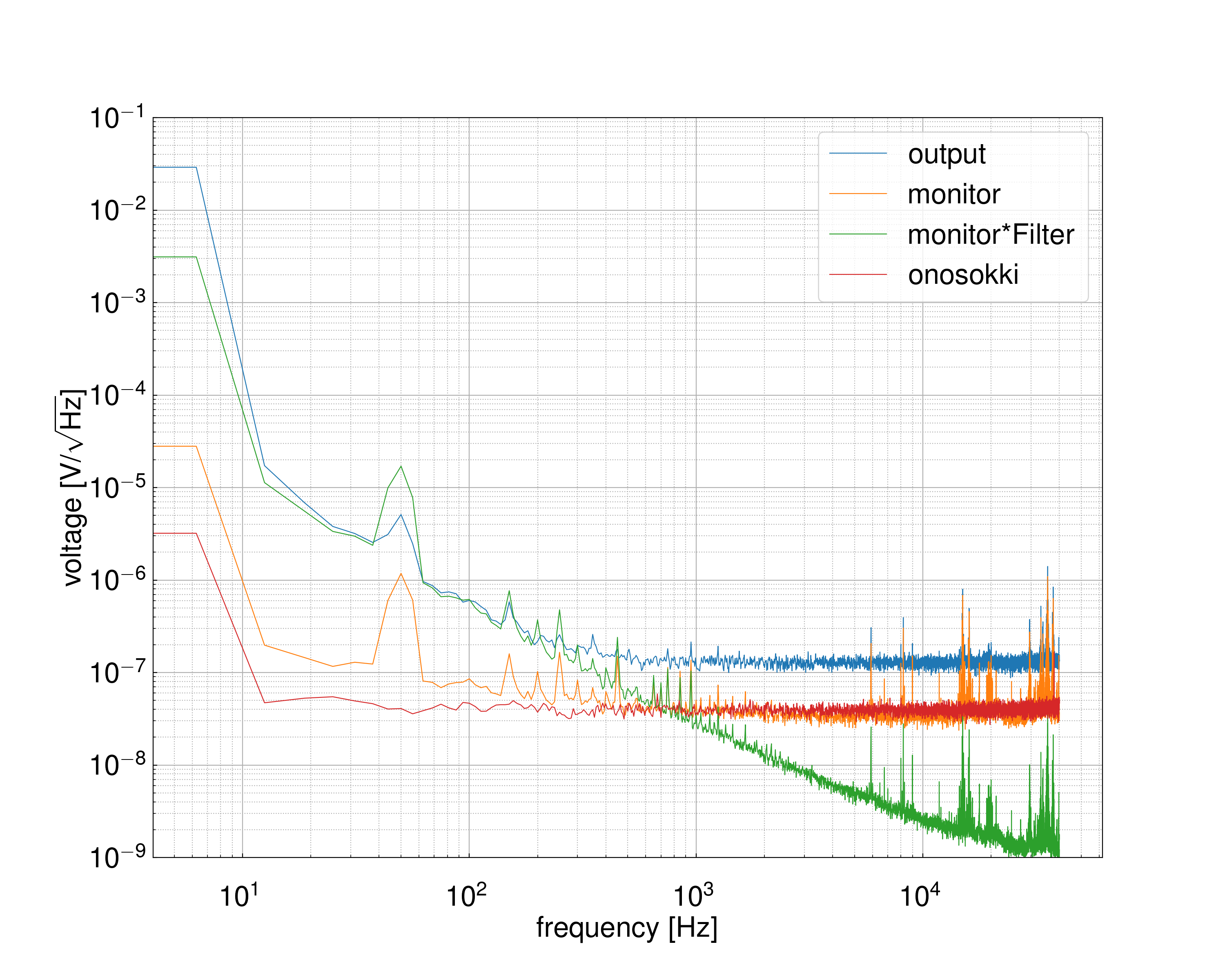

• Output noise

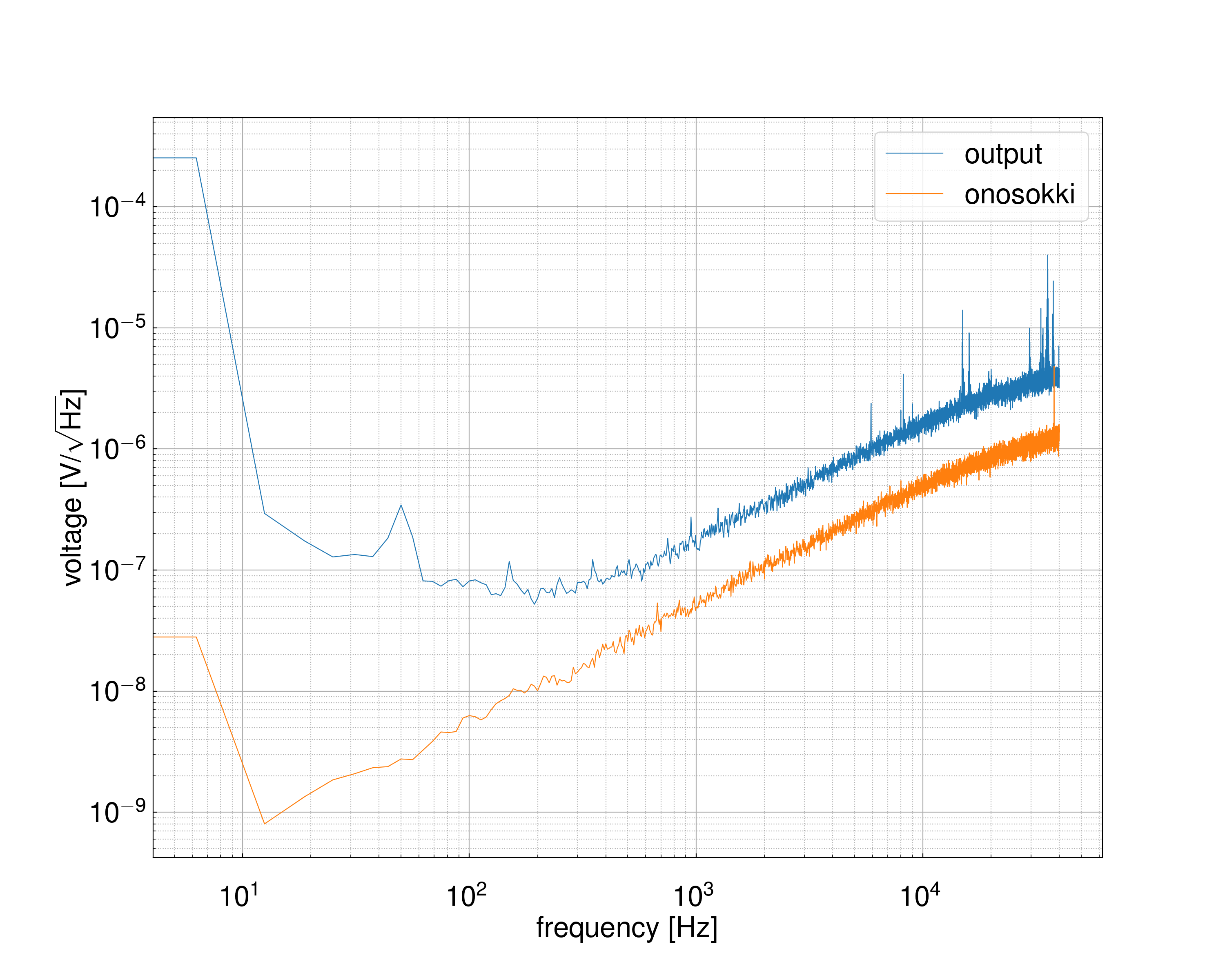

• Equivalent input noise


Design †

• Ver1: designed by H. Fujimoto in May 2022.
